JWELL Middel en kleiner kapasiteit bio-plastiek samestelling lyn
JWELL Middel en kleiner kapasiteit bio-plastiek samestelling lyn
JWELL Middel en kleiner kapasiteit bio-plastiek samestelling lyn
JWELL Middel en kleiner kapasiteit bio-plastiek samestelling lyn

JWELL Middel en kleiner kapasiteit bio-plastiek samestelling lyn


Plek van Oorsprong: Sjina
Brand Naam: jwel
sertifisering: ISO CE UL TUV
Kompeterende voordeel: Hoë kwaliteit, hoë kapasiteit, hoë stabiliteit, wêreldwye na-verkope diens, meer as 40 jaar ontwikkelingservaring


Voeg by mandjie
aansoeke

Disposable lunch boxes, knives and forks, straws, cups, shopping bags, courier bags, mulching film and other degradable products.

Beskrywing

Middle and smaller capacity bio-plastic compounding line contains premix system,compounding system,simple and economical cooling and cutting system. This line also can choose simple design for optional.

Premix system means putting raw material of bio-plastic, starch, biomass powder, mineral powder and different additives into high speed mixer together for significant premix before dumped into cooler mixer as a buffer for storage .

Modular twin screw extruder equipped with high torque or super high torque gearbox, wear resistant & corrosive resistant barrels, screw elements and high torque shaft, efficient heating and precise control to ensure stable, reliable and long term production.
Air cooling bed are designed with enough length to cool the melt strand off before cut by a traditional pelletizer, the whole system is simple and operated easily.

Special design of PTFE coating on air cooling bed significantly reduce the possibility of the sticky of melt on surface of the bed and production breaking time effectively. Also can design the front section of air cooling bed with closed cover and negative pressure air system to suck most of the smoke away to prevent workshop pollution.

spesifikasies
model L / D-verhouding Spoed motor krag Wringkrag vlak Kapasiteit vir verwysing Typical formula
CJWH-52 40-56 400 tpm 55KW 9N.m/cm3 180kg / hr Bio-plastic+ Filler+
Bymiddels
CJWH-65 40-56 400 tpm 110KW 9N.m/cm3 360kg / hr
CJWS-52 40-56 400 tpm 75KW 11N.m/cm3 260kg / hr
CJWS-65 40-56 400 tpm 132KW 11N.m/cm3 450kg / hr

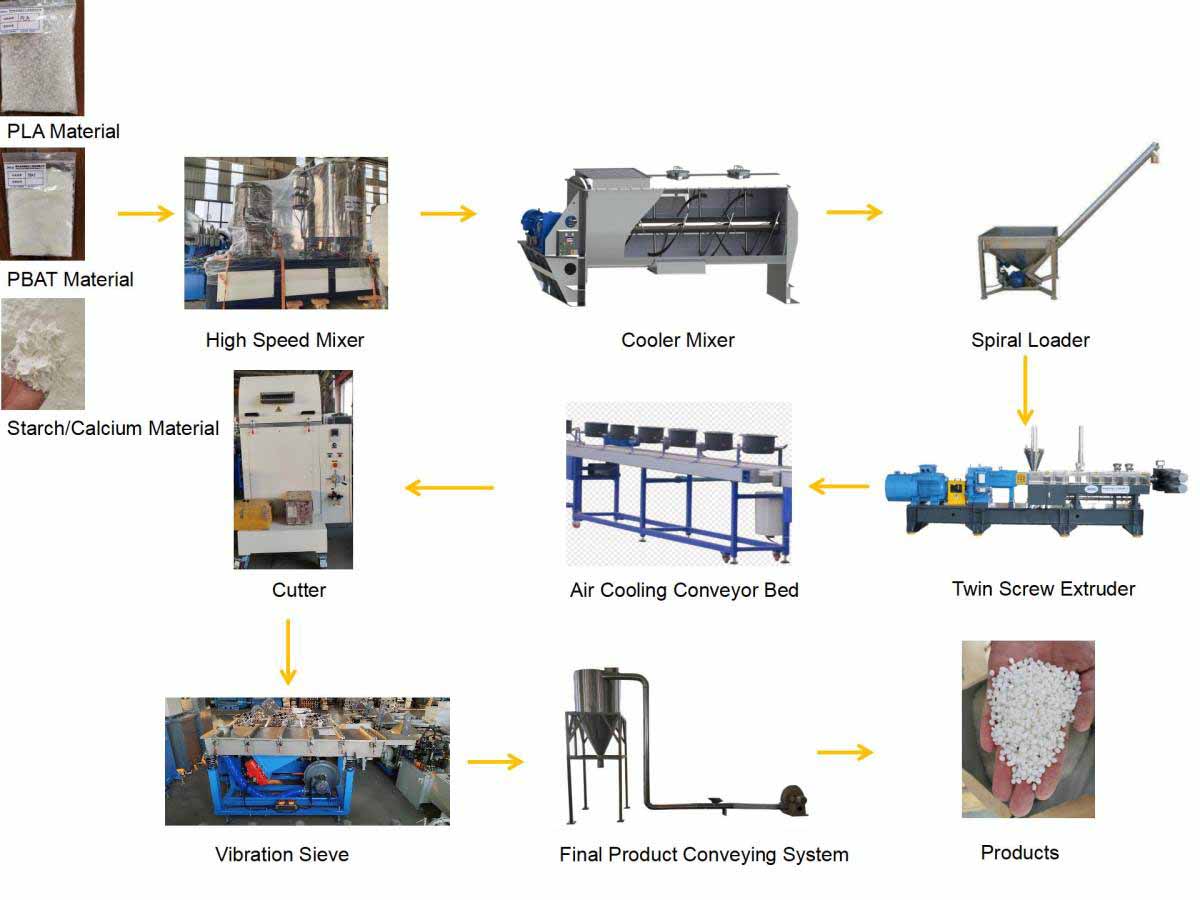

Verwerk stappe

vordering

Gestuur

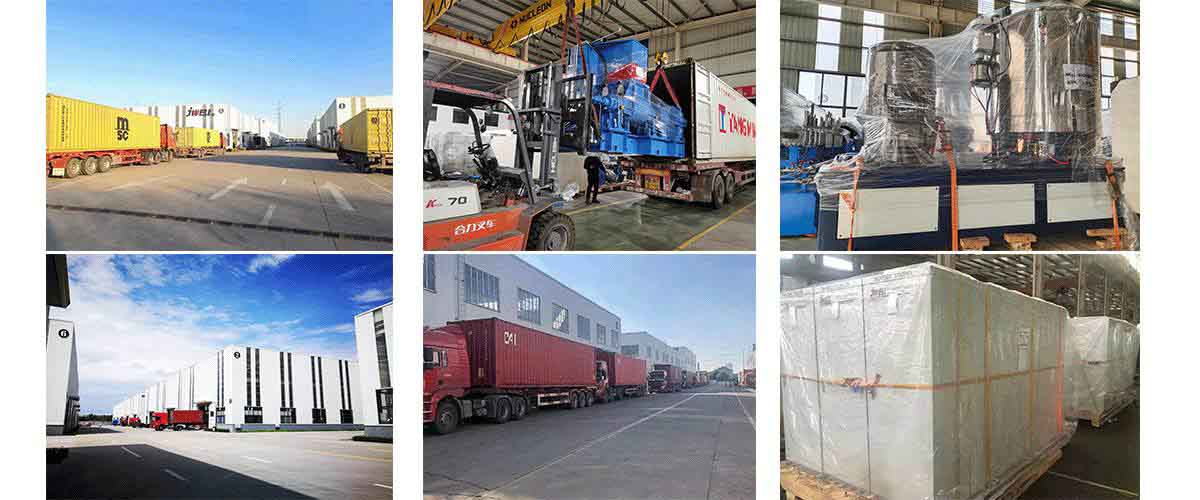

verpakking
