High Pressure RTP Twisted Composite Pipe Extrusion Line
High Pressure RTP Twisted Composite Pipe Extrusion Line
High Pressure RTP Twisted Composite Pipe Extrusion Line
High Pressure RTP Twisted Composite Pipe Extrusion Line

High Pressure RTP Twisted Composite Pipe Extrusion Line


Plek van Oorsprong: Sjina
Brand Naam: jwel
sertifisering: ISO CE UL TUV
Kompeterende voordeel:
Hoë kwaliteit, hoë kapasiteit, hoë stabiliteit, wêreldwye na-verkope diens, meer as 30 jaar ontwikkelingservaring
Voeg by mandjie
aansoeke

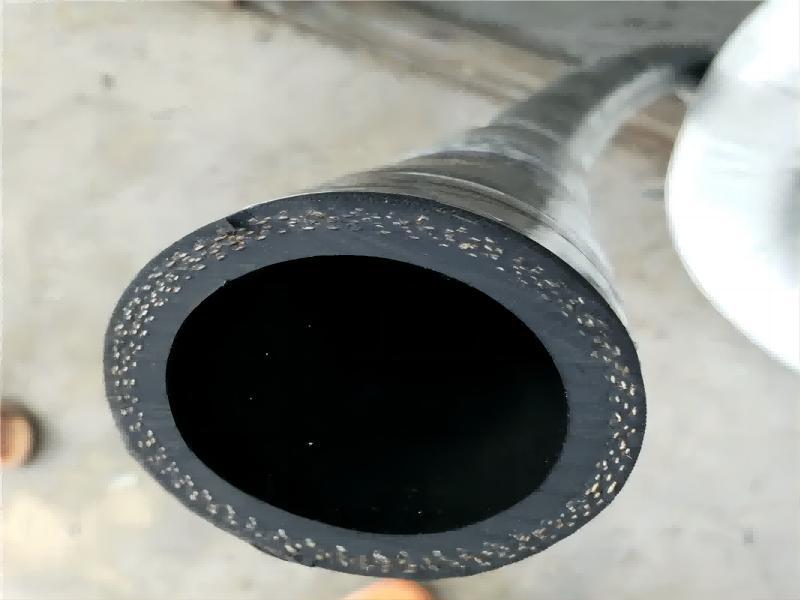

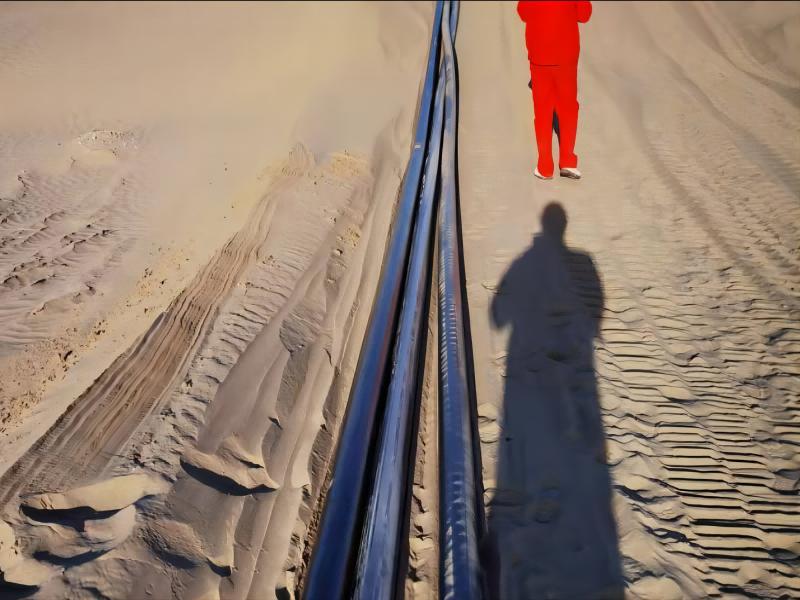

RTP winding reinforced composite pipe is a new type of plastic composite pipe with high pressure resistance, corrosion resistance and good flexibility.  Used in petroleum, water supply and other high pressure conveying environment.The inner layer is corrosion-resistant and wear resistant polyethylene pipe, the middle layer is reinforced winding layer, and the outer layer is protective polyethylene layer.

Beskrywing

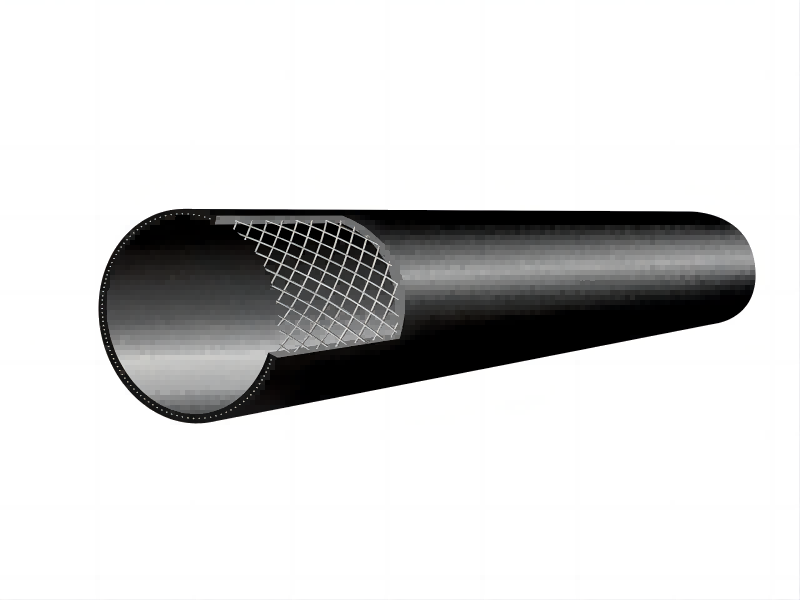

Most of the plastic reinforced pipes RTP have a three-layer structure, the inner layer is a corrosion and abrasion resistant polyethylene pipe (PE100), the middle layer is a reinforced winding layer (winding materials include high strength synthetic fiber, glass fiber, carbon fiber, metal iron sheets and fine metal wires) and the outer layer is a protective polyethylene (PE100) layer.  The pressure of Aramid fiber reinforced pipe is up to 9-14Mpa. The burst pressure can be 40Mpa.

spesifikasies
 Tipe Model(mm) extruder  Uitset (kg / h)  Krag (kW)
JWG-RTP-160 Ø63 ~ Ø160 JWSG-65/33 120-300 160
JWG-RTP-250 Ø75 ~ Ø250 JWSG-75/38 300-500 210
JWG-RTP-315 Ø110 ~ Ø315 JWSG-75/38 400-600 230


Gestuur

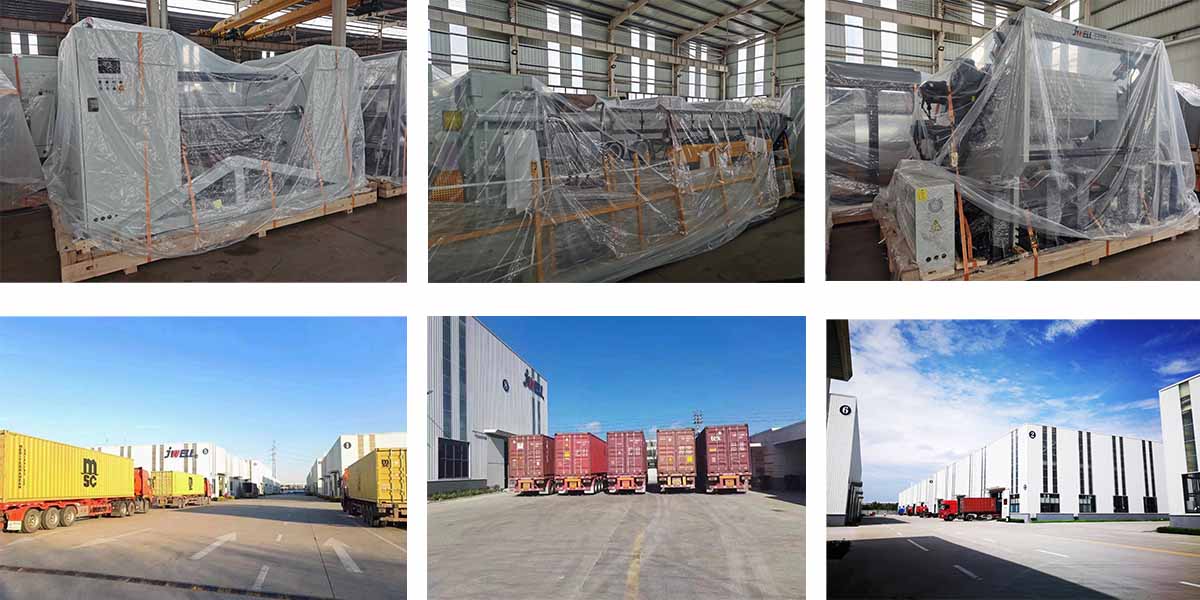

verpakking
