UPVC/CPVC Dubbelstreng-ekstrusie, Vierstrand-ekstrusielyn
UPVC/CPVC Dubbelstreng-ekstrusie, Vierstrand-ekstrusielyn
UPVC/CPVC Dubbelstreng-ekstrusie, Vierstrand-ekstrusielyn
UPVC/CPVC Dubbelstreng-ekstrusie, Vierstrand-ekstrusielyn

UPVC/CPVC Dubbelstreng-ekstrusie, Vierstrand-ekstrusielyn


Plek van Oorsprong: Sjina
Brand Naam: jwel
sertifisering: ISO CE UL TUV
Kompeterende voordeel:
Hoë kwaliteit, hoë kapasiteit, hoë stabiliteit, wêreldwye na-verkope diens, meer as 30 jaar ontwikkelingservaring
Voeg by mandjie
aansoeke

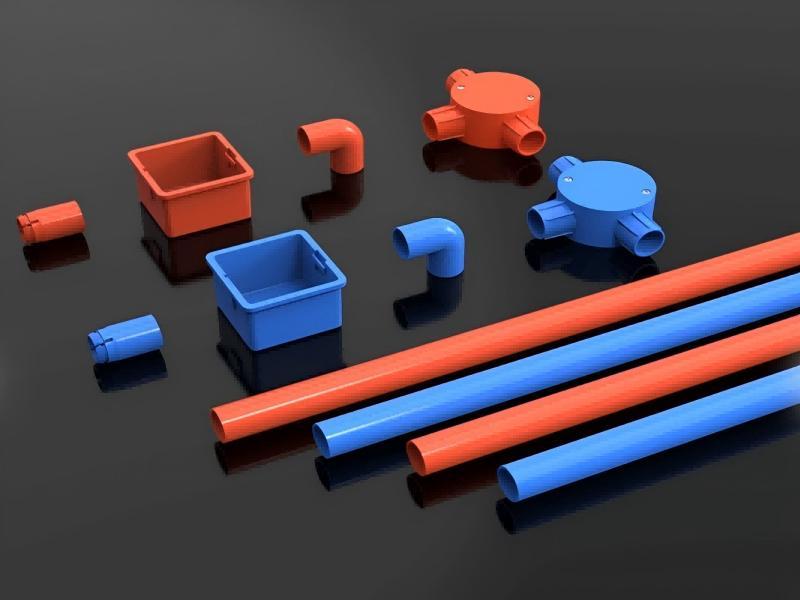

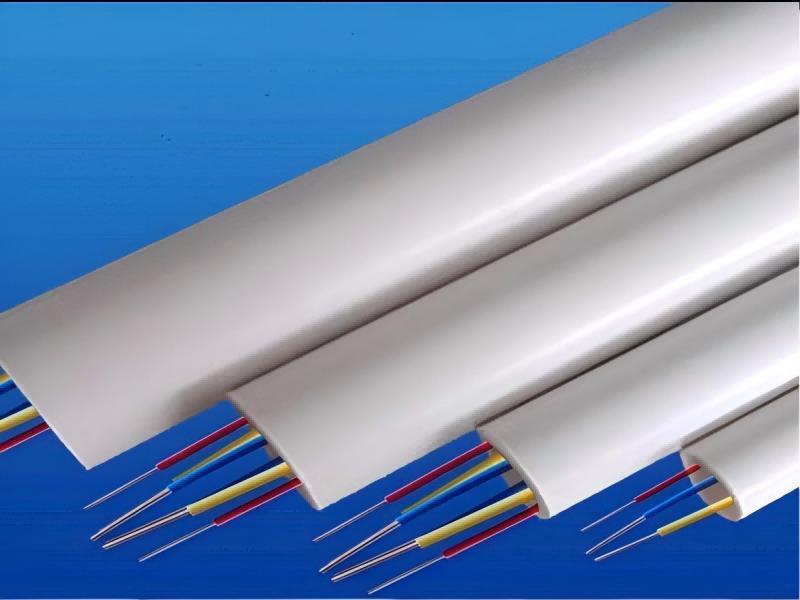

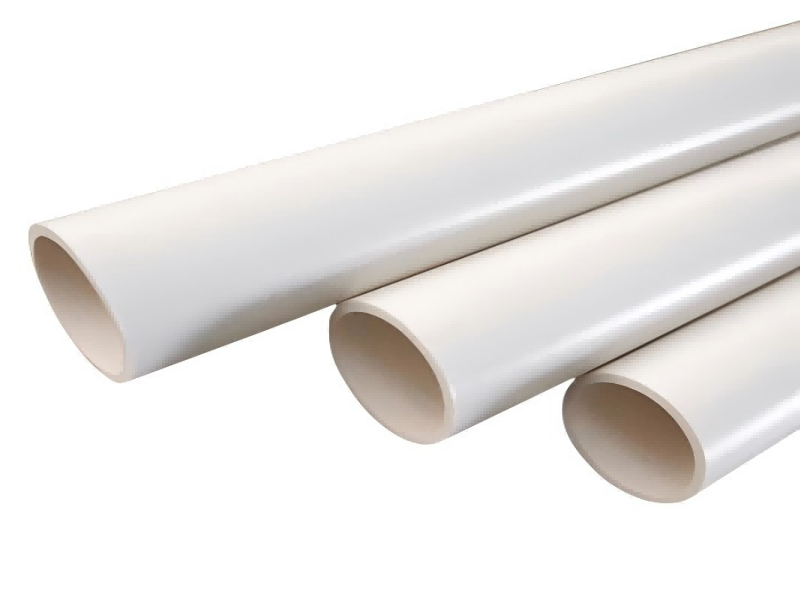

Widely used in agricultural water supply and drainage, construction water supply and drainage, cable laying and other aspects,PVC plastic pipe because of its characteristics, widely used in oil field crude oil gathering and transportation, chemical use of temperature and corrosion resistant pipeline, hot water water supply and drainage pipeline, directly buried high and ultra high voltage power transmission, cable pipe protection and other fields.

Beskrywing

In the production of small diameter pipe and requirements under the condition of  high output, especially shows the advantages of using dual-strand extrusion. The characteristics of  our dual-strand downstream equipment is with two sets of independent control circuit, the speed of each pipeline can be adjusted respectively, and can even produce different diameter of the pipe at the same time.
Four strand extrusion line is suitable for the ≦32 mm pipe with high-speed production, unilateral pipe speed up to 25 m/min.
This extrusion line adopts special screw and mould design, materials uniform plasticizing, fast production speed, low energy consumption. Control is easy to operate, reduce the technical requirements of the operation of operating workers. And effectively save the workshop space.

spesifikasies
Tipe Pyp spesifikasie (mm)  Maksimum uitset (kg/h)  Totale drywing (kw)
JWG-PVC32(Four out) Ø20~Ø32 250~300 104
JWG-PVC63(Two out) Ø20~Ø63 250~300 105
JWG-PVC110(Two out) Ø50~Ø110 300~400 145
